An outdoor-ready patrol platform for urban public spaces, designed to deliver 24/7 rounds, day-night surveillance, intelligent detection, and remote command through a unified Robot Management System (RMS).

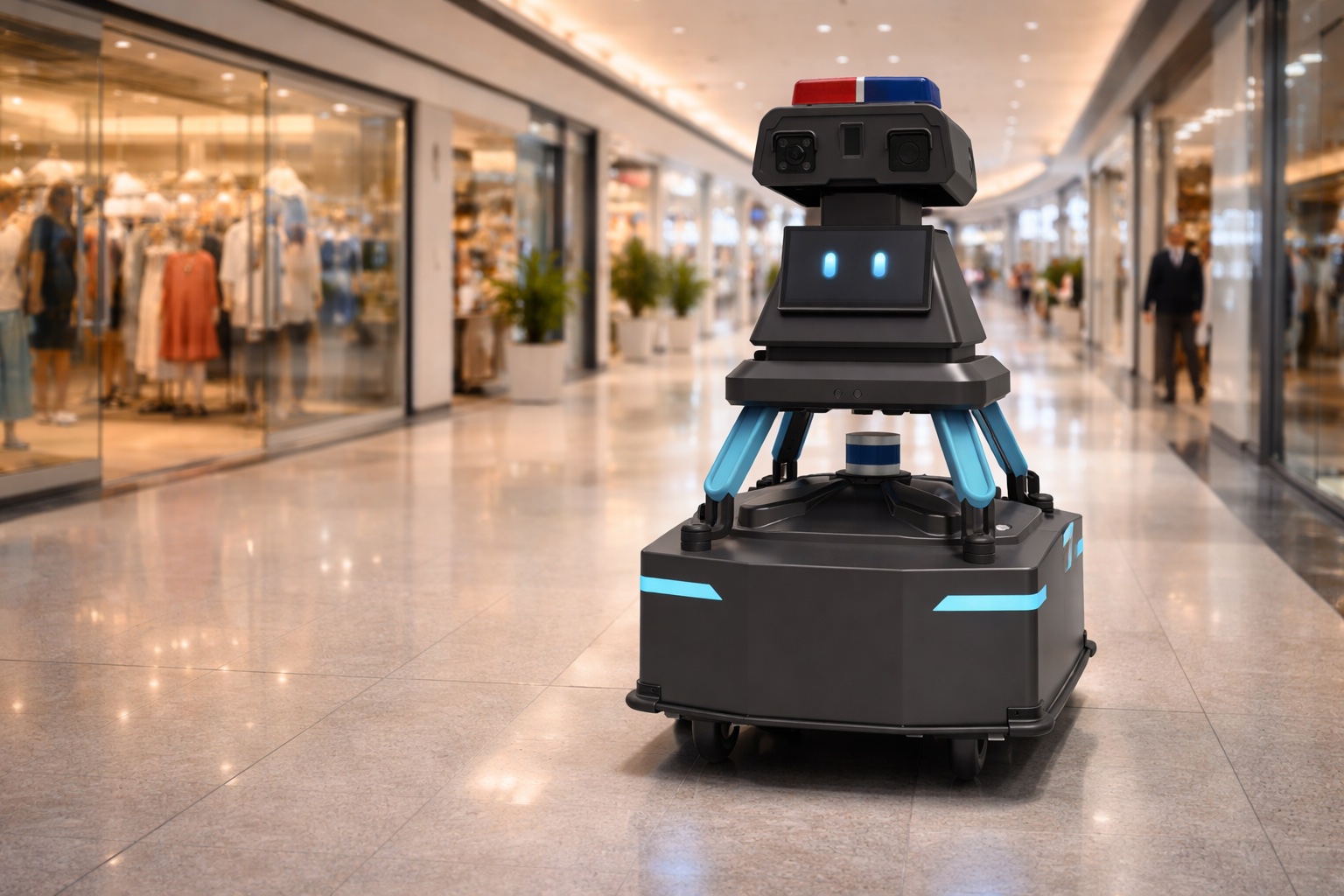

V-S is designed for environments where foot traffic, vehicles, and weather variability are part of daily reality. Typical deployments include stadium plazas, communities, parks, scenic areas, schools, hospitals, prisons, and port surroundings, anywhere teams need consistent coverage without increasing headcount.
The robot combines autonomous patrol with remote operations. It maps routes, avoids obstacles, and returns to charge automatically, while providing live video, event logs, and alarm workflows to support security teams and command centers.
Designed for urban outdoor sites where visibility, safety, and consistency matter.
Outdoor mobility, continuous patrol cycles, and practical tools for deterrence and evidence.
Create patrol maps quickly and define repeatable routes and checkpoints for consistent coverage.
Ultrasonic sensors, LiDAR positioning, and drop-prevention support safe movement around people and edges.
Automatic charging enables continuous rounds with minimal operator intervention.
Zero turning radius improves maneuverability in narrow passages and dense pedestrian areas.
Four-wheel drive with independent suspension supports slopes up to 15° (site dependent).
Handles small curb transitions with up to 60 mm obstacle clearance capacity.
V-S combines multi-camera coverage with audio interaction and visible signaling. This supports deterrence in public spaces and improves incident response by providing context, evidence, and clear operator communication.
HD camera + 360 camera support situational awareness without blind angles.

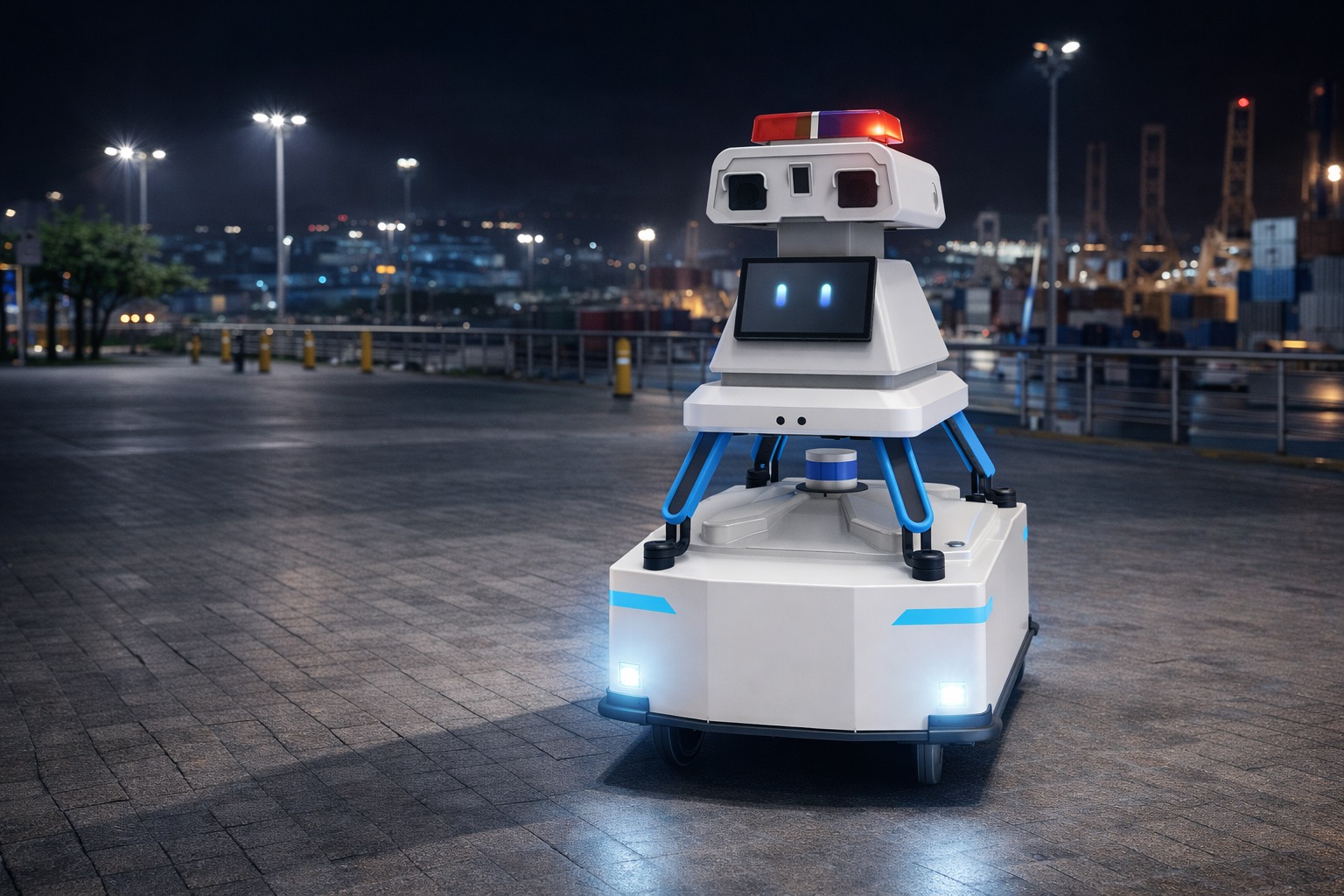

Multi-direction HD night vision and optional thermal imaging support patrol after dark.
Microphone array and speaker enable broadcasting, prompts, and audio/video intercom.
Day-night monitoring can include night vision and optional thermal imaging workflows.
Recognition workflows help teams respond faster and focus on events that matter.

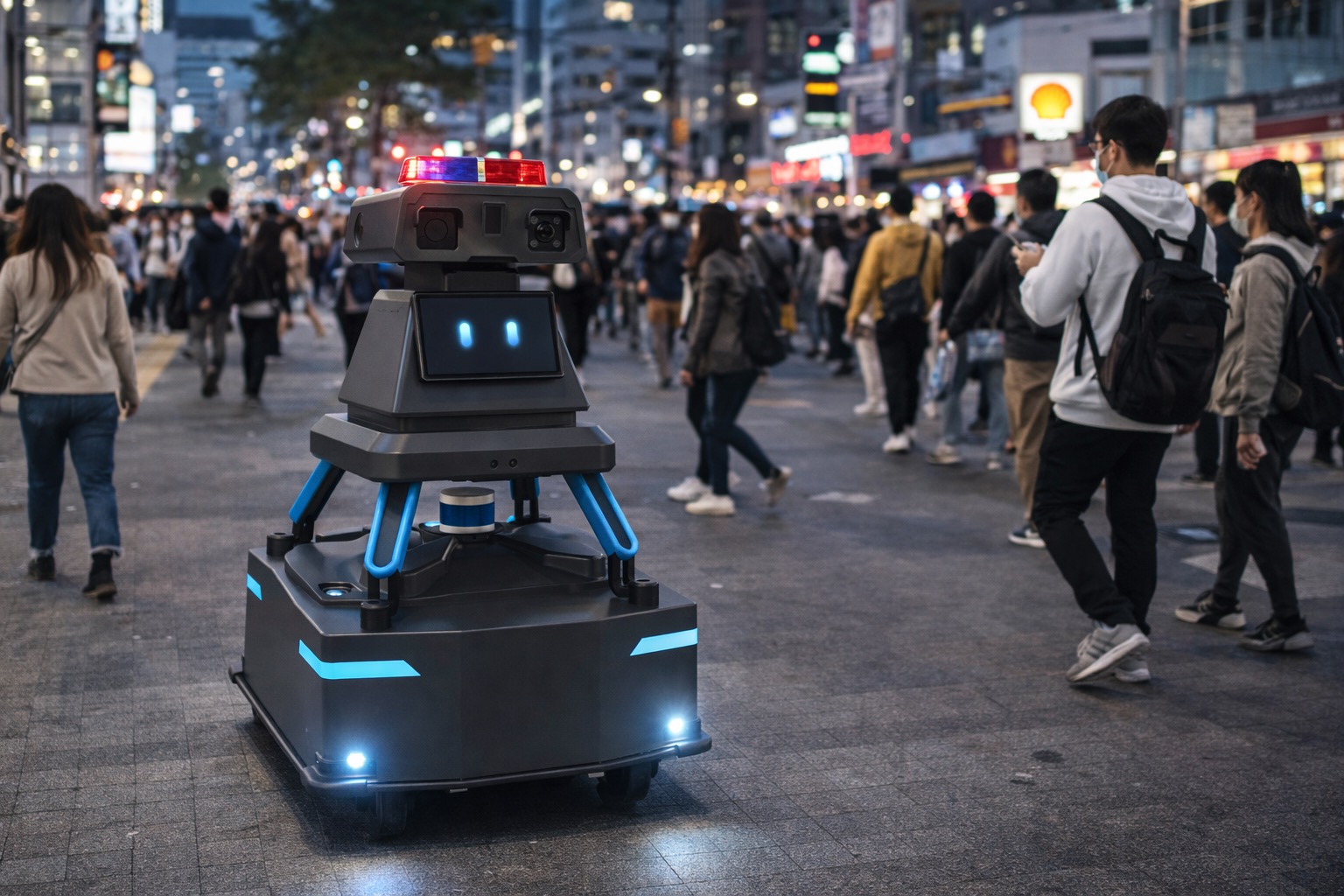

V-S supports intelligent detection tasks such as face recognition, license plate recognition, and pedestrian detection. Recognition results can be tied to map locations, enabling quick review of where an event occurred and supporting black/white list workflows based on site policy.
Multi-channel comparison supports whitelist/blacklist defense control workflows.
Identify plates in compliant video conditions and link results to your owner database.
Detect abnormal presence in sensitive zones and support deterrence and escalation procedures.
Detection results can be linked to locations to support review, reporting, and response.

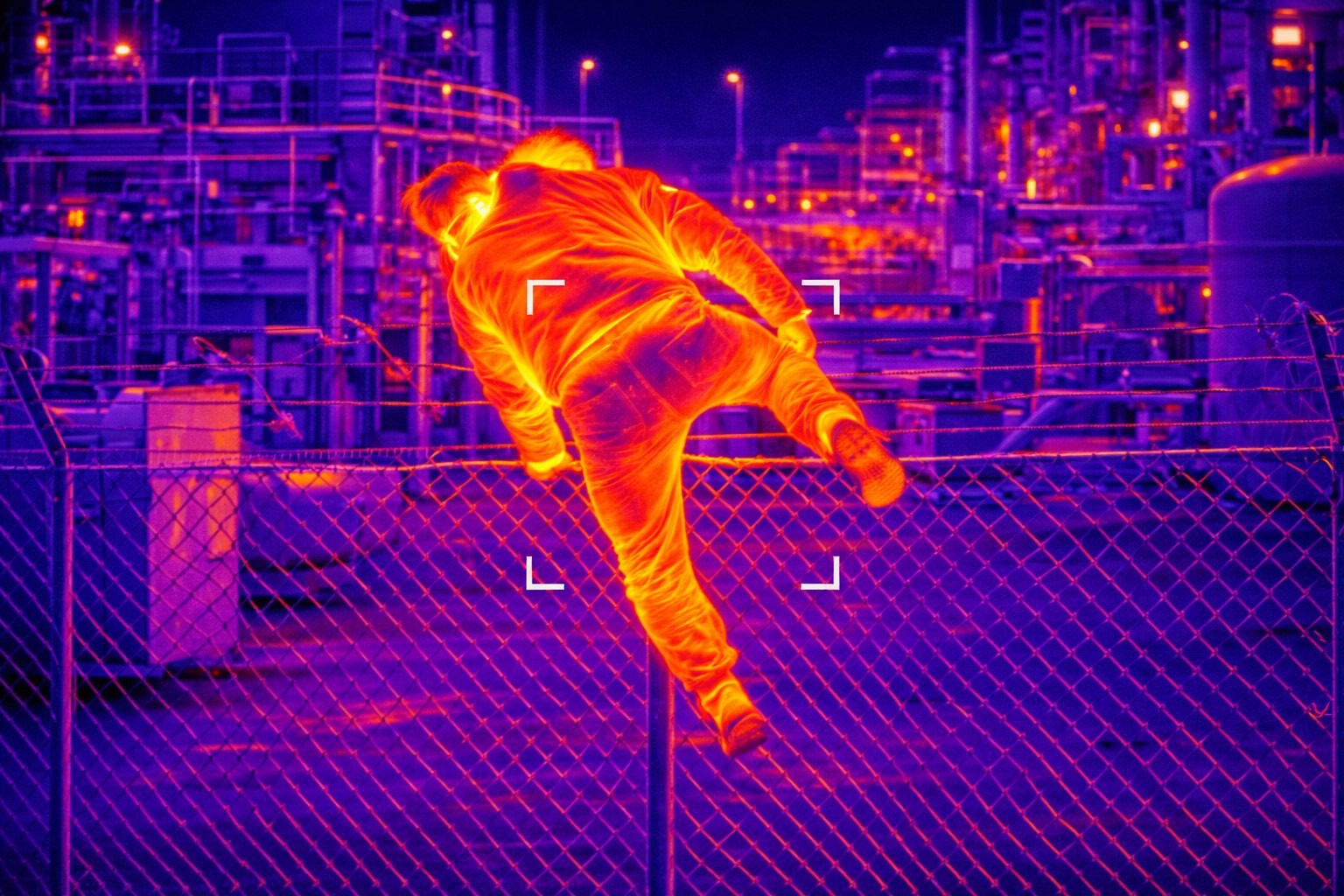

In addition to patrol and surveillance, V-S can support early warning by combining thermal imaging (optional) and sensor packages. This enables workflows such as heat source monitoring, smoke monitoring, and temperature and humidity tracking to reduce potential safety hazards in outdoor or semi-enclosed sites.
Optional thermal imaging and smoke monitoring assist with earlier discovery of fire risks.
Detect abnormal entry patterns and support immediate operator review and response.
Optional sensor extensions support monitoring for specific high-risk environments.
Sensor configurations can be tailored to environment and risk profile.

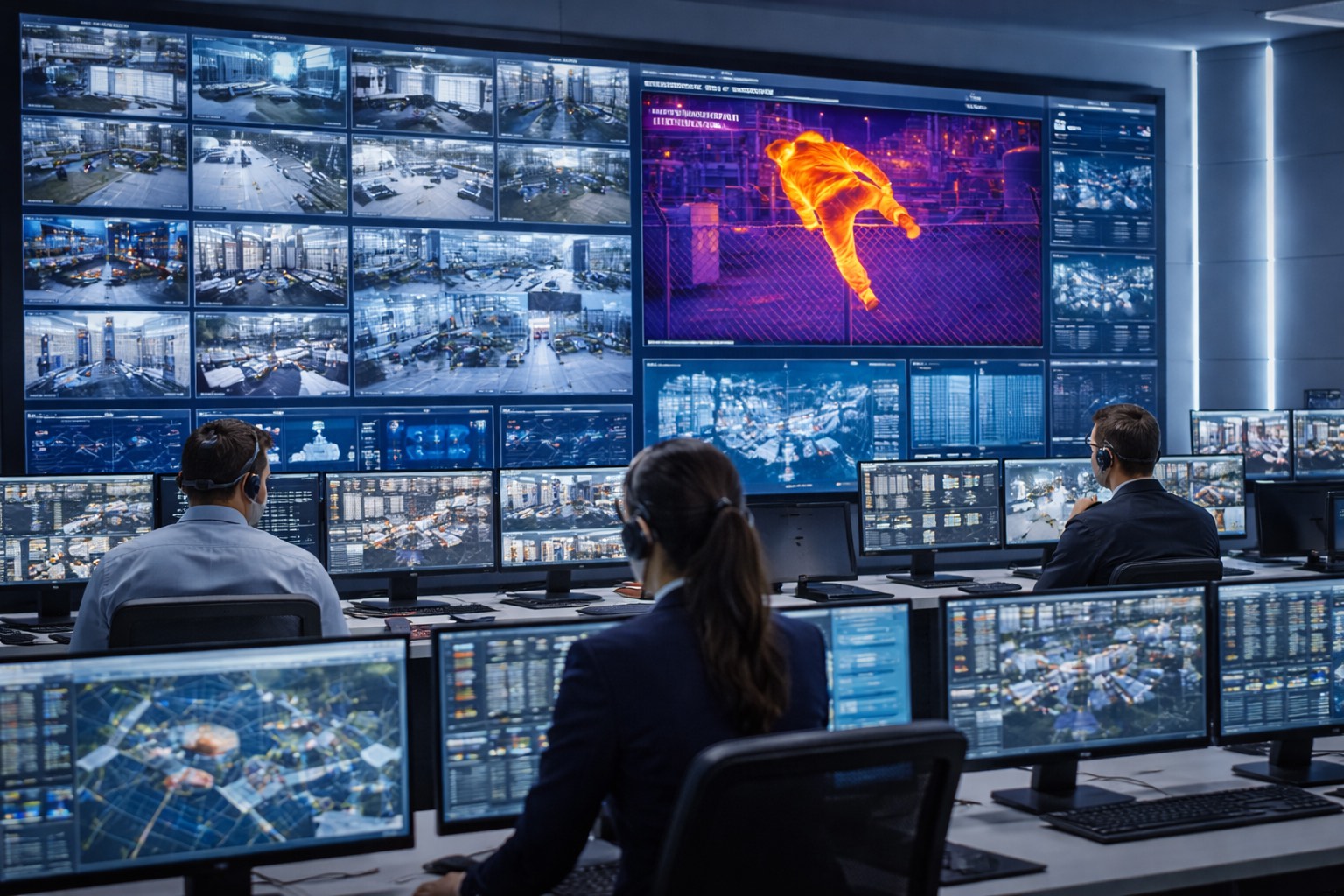

RMS provides centralized control for V-S deployments: robot status management, patrol task issuance, real-time remote monitoring, historical video backtracking, real-time alarm handling, report generation, and system parameter settings.
It also supports remote control and emergency command, remote media delivery, remote audio/video intercom, remote upgrades, and API development for integration with smart security systems, police systems, and smart city platforms.
Operator workflows for review, dispatch, and evidence preservation.
Historical video backtracking supports investigations and operational accountability.
API support to connect with existing security and command platforms.
RMS supports multi-device management over 4G/5G/Wi‑Fi deployments.
| CPU | Intel Xeon E5 2.1 GHz or higher |
|---|---|
| Memory | 16 GB or more |
| Storage | 1 TB or more |
| GPU | NVIDIA GeForce GTX 1060 or higher |
| Network | Gigabit Ethernet |
| OS | CentOS Linux release 7.3.1611 |
| Runtime | Java 1.8.0_121 |
| Web server | Apache Tomcat 8.5.14 |
| File server | vsftpd 3.0.2 |
| Database | MySQL 5.7.18 |
Key parameters for outdoor planning, patrol routing, and charging cycles.
